What is the working principle of slewing bearings?

Slewing Bearing is a large type of bearing capable of withstanding axial force, radial force and overturning moment simultaneously. It achieves smooth 360-degree rotational movement through a unique mechanical structure. For engineers and equipment operators in Southeast Asia, understanding the working principle of slewing bearings is of vital importance as it directly affects the safety, service life and maintenance costs of the equipment. This article will explain the working mechanism of this complex mechanical component in an easy-to-understand way.

Core Components: Understanding the Internal Structure of Slewing Bearings

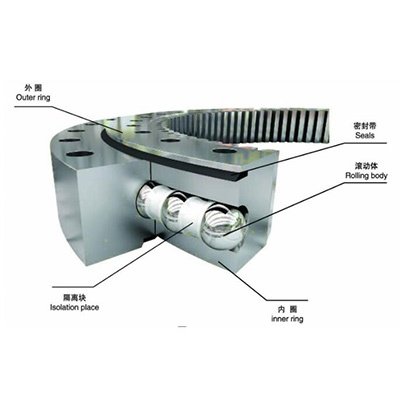

The slewing bearing mainly consists of four key components: the inner ring, the outer ring, the rolling elements (steel balls or rollers), and the spacers. The inner and outer rings are typically made of high-strength alloy steel and undergo precise machining and heat treatment to achieve the required hardness and wear resistance. The rolling elements circulate in the raceways between the inner and outer rings, reducing friction and bearing loads. The spacers maintain the appropriate spacing between the rolling elements, ensuring even load distribution.

Special climate reminder for Southeast Asia: The high-temperature and high-humidity environment requires slewing bearing manufacturers to use special anti-corrosion coatings and sealing materials to prevent premature failure.

Working Principle: The Mystery of Load Transmission and Motion Realization

The working principle of slewing bearings is based on the rolling friction principle. When the equipment needs to rotate, the driving pinion engages with the gear ring of the slewing bearing to transmit torque. The rolling elements (steel balls or rollers) roll between the inner and outer raceways, thus converting sliding friction into rolling friction and significantly reducing rotational resistance.

Load transmission path:

1. External loads (such as the weight of the lifted object) act on the upper structure of the equipment.

2. The load is transmitted to the slewing bearing through the gear ring.

3. The rolling elements evenly distribute the load to the entire bearing ring.

4. The final load is transmitted to the equipment foundation structure through the base.

Gear system: Precise meshing for power transmission

The gear system of slewing bearings is one of its core features. The gears can be designed as internal or external gear rings, precisely meshing with the driving pinion. Professional slewing bearing manufacturers will customize gear parameters, including module, pressure angle and tooth profile, based on the final application to ensure efficient power transmission and long service life.

In the port cranes and excavators in Southeast Asia, the gear systems must be capable of continuous operation in high-humidity environments, which poses special requirements for the anti-corrosion treatment and lubrication of the gears.

Sealing technology: The key to protecting internal components

The sealing system of slewing bearings prevents contaminants from entering and grease from leaking, which is particularly important in the rainy and dusty environment of Southeast Asia. High-quality slewing bearing manufacturers will adopt multi-lip seal designs, combined with special rubber materials, to ensure reliable protection even in extreme weather conditions.

Regular maintenance is crucial for ensuring the reliable operation of slewing bearings:

- Check the integrity of the seals every three months.

- Regularly replenish grease according to the frequency of use.

- Remove accumulated debris and corrosion.

- Inspect the wear of the gear tooth surfaces.

Professional tip: Working with a slewing bearing manufacturer that provides technical support can help you obtain a customized maintenance plan tailored to your specific equipment.
